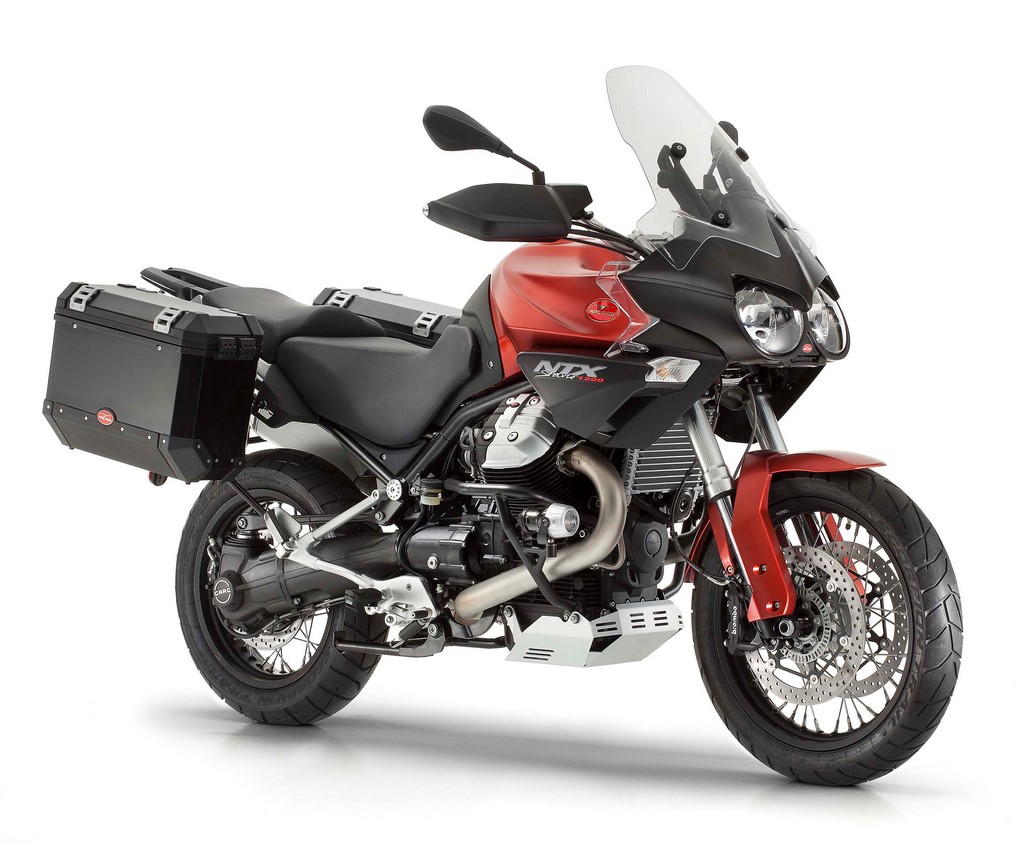

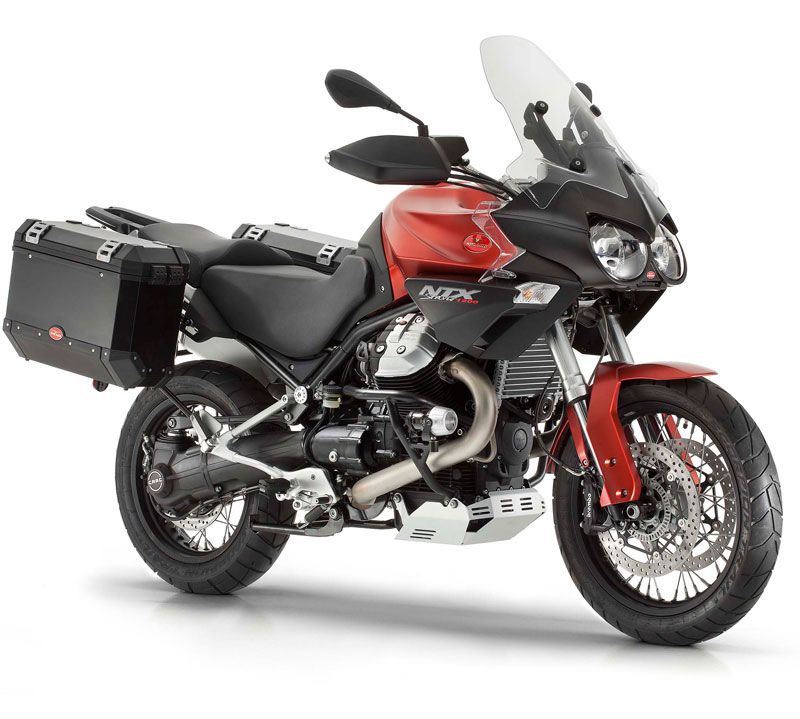

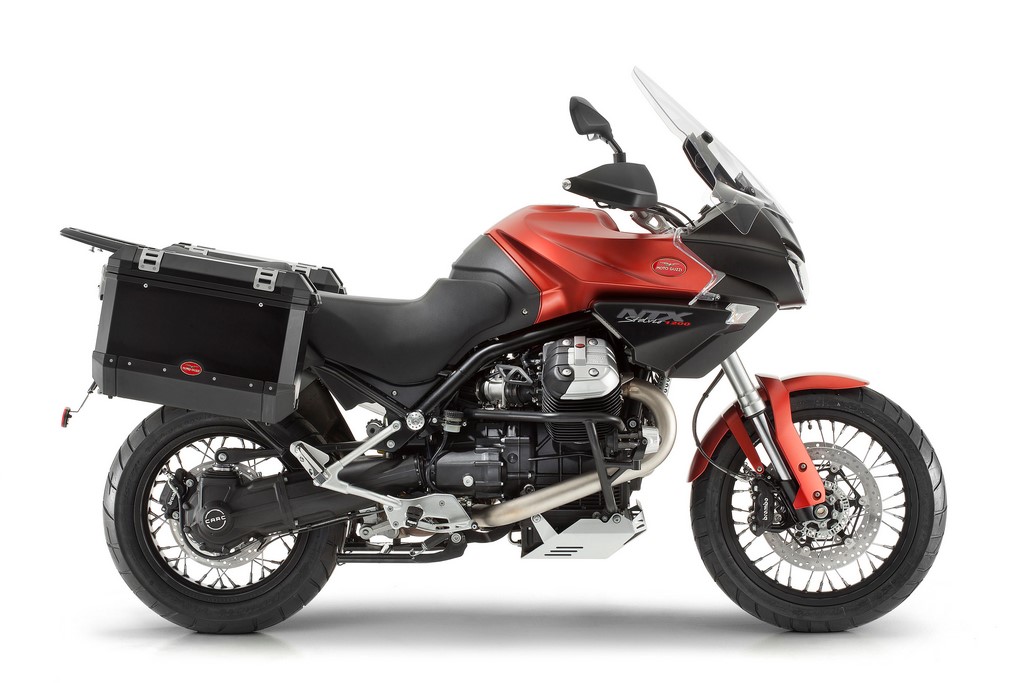

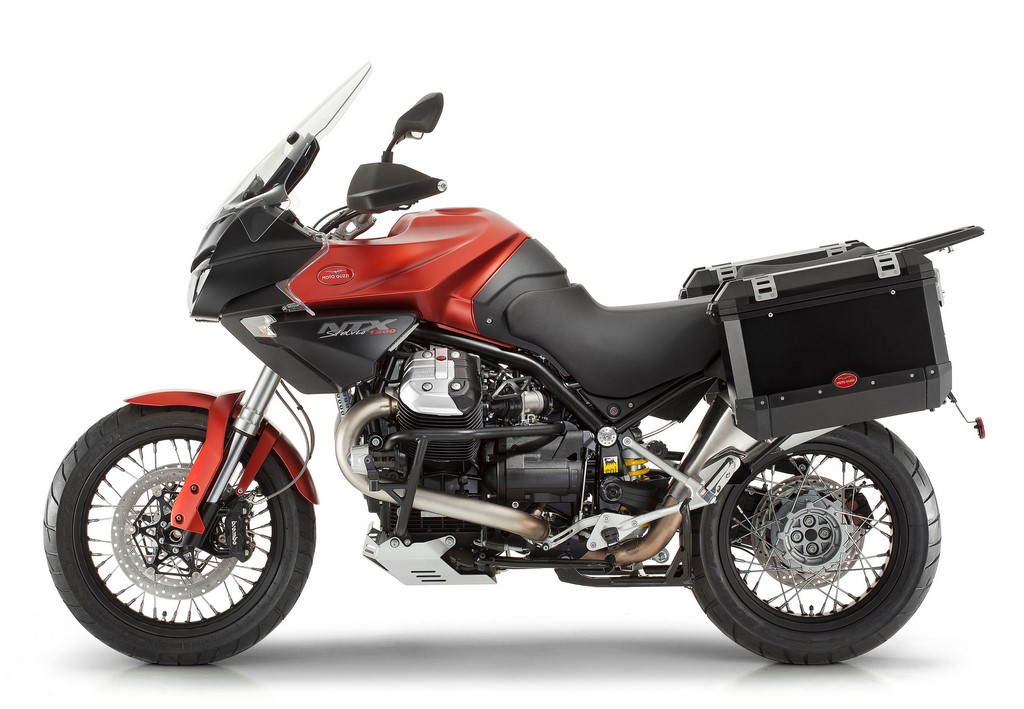

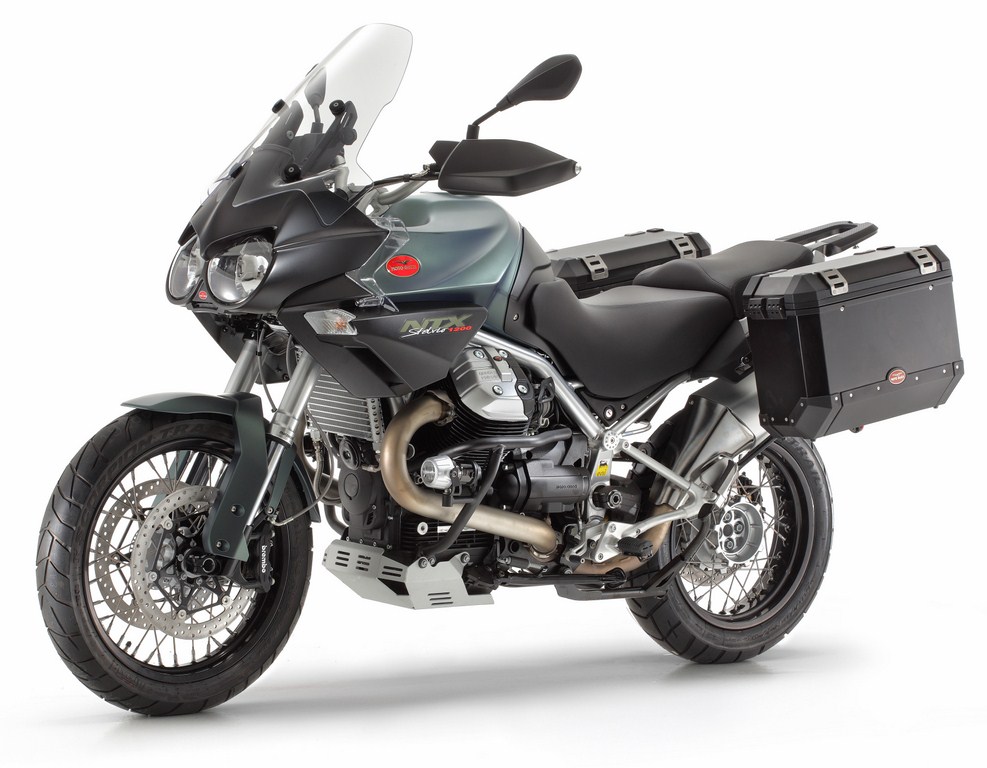

Moto Guzzi Stelvio 1200 NTX - Technical Specifications
|
Engine
|
|
90° V-twin engine, 4-stroke, cooled through air and oil and an independent cooling pump | |
|
Engine capacity
|
|
1,151 cc | |
|
Maximum power
|
|
77 kW (105HP) at 7,250 rpm | |
|
Maximum torque
|
|
above 113 Nm at 5,800 rpm | |
|
Fuel supply / Ignition
|
|
Multipoint sequential electronic ignition, Magneti Marelli IAW5A phased, alfa-n system; two Ø 50mm throttle body, Weber IWP 189 injectors, two lambda probes. | |
|
Exhaust system
|
|
stainless steel, 2-in-1 type, three-way catalytic converter with lambda probe (Euro 3) | |
|
Transmission
|
|
6-speed | |
|
Final Drive
|
|
CARC compact reactive cardan shaft drive system; double cardan joint and floating bevel gear set, drive ratio 12/44 = 1 : 3.666 | |
|
Front suspension
|
|
completely adjustable fork (spring preload and hydraulic compression and rebound damping) with 45 mm diam. upside down stanchions and caliper mounting for radial brake calipers | |
|
Rear suspension
|
|
single arm with progressive linkage, monoshock with adjustable hydraulic rebound damping and spring preload adjuster knob | |
|
Front brake
|
|
dual 320 mm stainless steel floating discs, radial calipers with 4 horizontally opposed pistons | |
|
Rear brake
|
|
282 mm stainless steel fixed disc, floating caliper with 2 parallel pistons | |
|
Tyres
|
|
110/80 R19” (front) - 150/70 R17” (rear) | |
|
Saddle height
|
|
820-840 mm (adjustable) | |
|
Fuel tank
|
|
32 litres (7 litre reserve) | |
|
Kerb weight
|
|
272 Kg | |
|
Dimensions
|
|
Length: 2250 mm / Width: 1.050mm / Height: 1.480 mm | € 16.285,00 |
{tab=Rood - Groen (2015)}

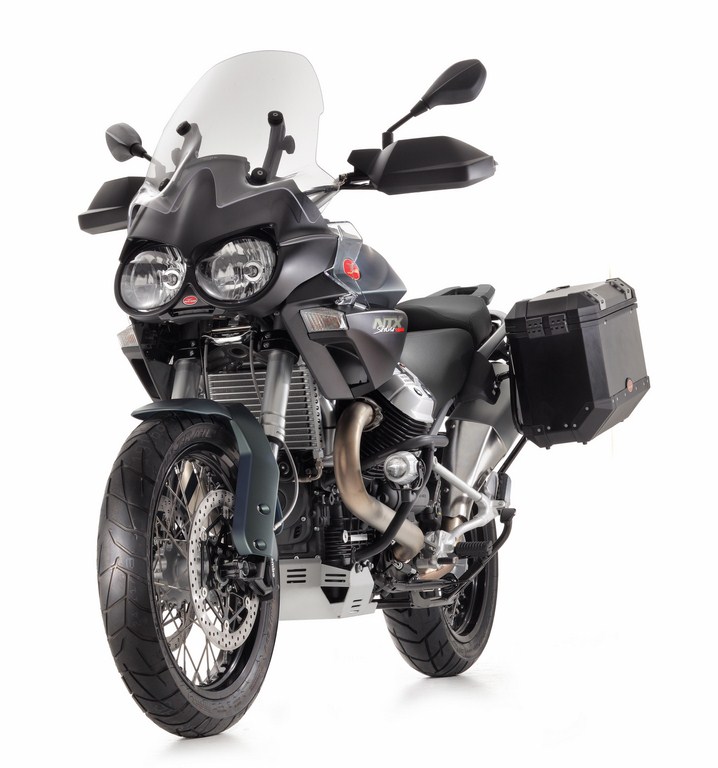

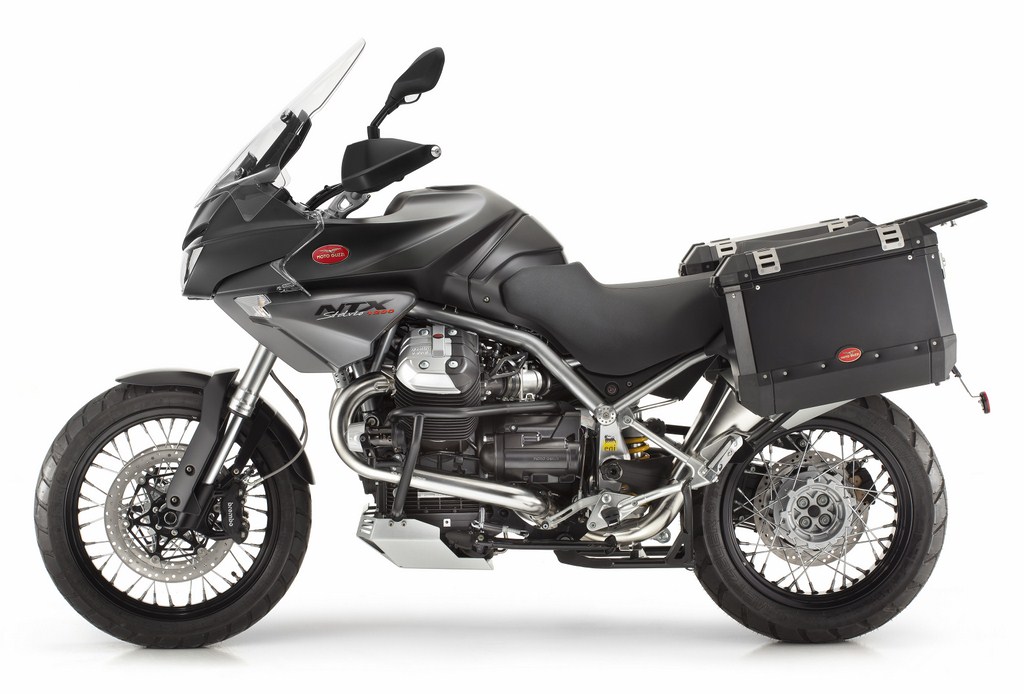

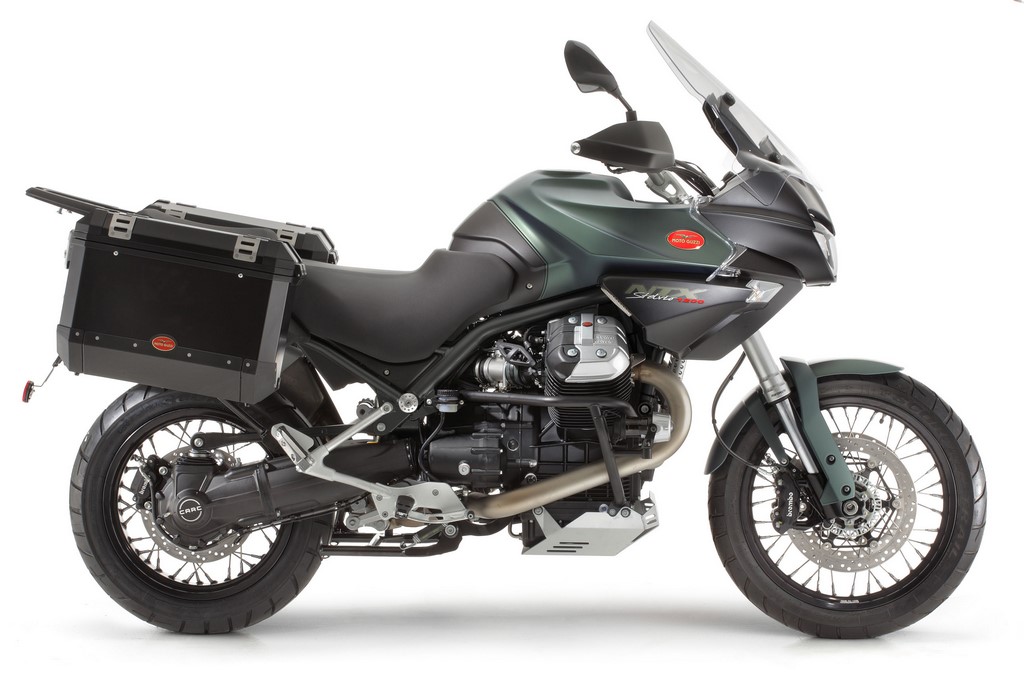

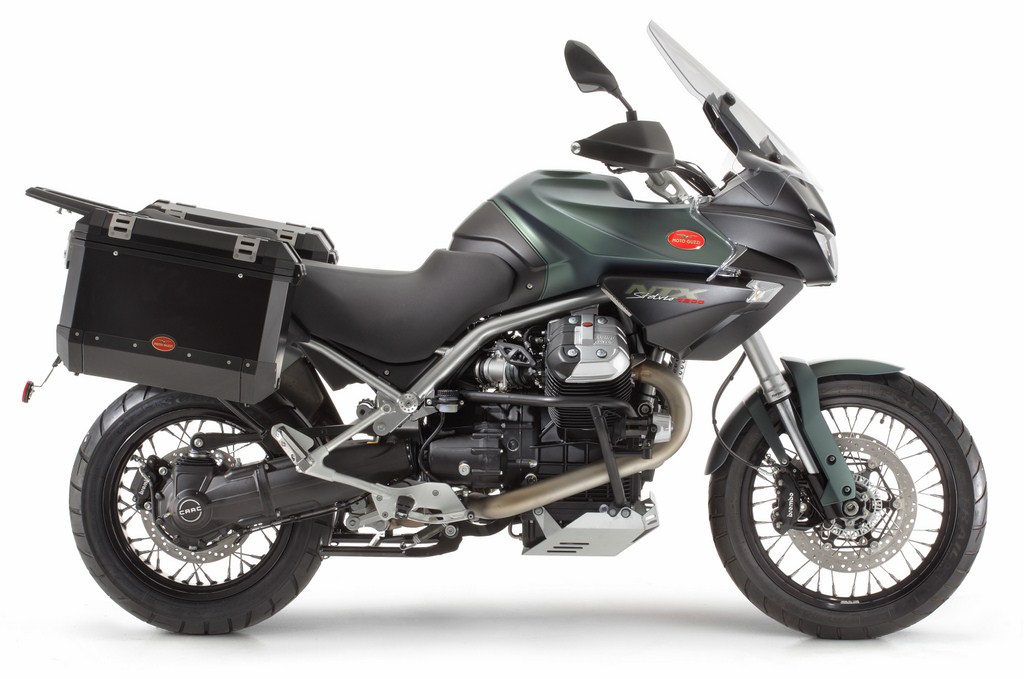

{tab=Groen - Zwart (2012-2014)}
